High Power Wedged V-belt

Home > V-BELT > Industrial V-belt > High Power Wedged V-belt

For all industrial application especially for higher horse-power rating (3V, 5V, 8V) than conventional classical V-belts.
3VX, 5VX(cog) for excellent flexibility.

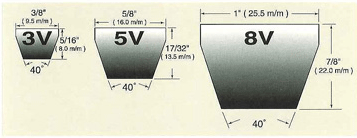

CROSS SECTIONS OF HIGH POWER WEDGED V-BELT

Section	Approximate Size
3V	26"~240"
5V	50"~480"
8V	100"~480"
3VX(COG)	23"~82"
5VX(COG)	25"~80"

STANDARD SIZE LIST

Part No.	Belt O.C.(In)	Part No.	Belt O.C.(In)	Part No.	Belt O.C.(In)
3V 250	25	5V 500	50	8V 1000	100
3V 260	26	5V 530	53	8V 1030	103
3V 280	28	5V 560	56	8V 1060	106
3V 300	30	5V 600	60	8V 1120	112
3V 310	31	5V 630	60	8V 1180	118
3V 330	33	5V 670	67	8V 1250	125
3V 350	35	5V 710	71	8V 1280	128
3V 370	37	5V 750	75	8V 1320	132
3V 400	40	5V 800	80	8V 1400	140
3V 420	42	5V 850	85	8V 1450	145
3V 450	45	5V 900	90	8V 1500	150
3V 470	47	5V 950	95	8V 1560	156
3V 500	50	5V 1000	100	8V 1600	160
3V 530	53	5V 1060	106	8V 1650	165
3V 560	56	5V 1120	112	8V 1700	170
3V 600	60	5V 1180	118	8V 1750	175
3V 630	63	5V 1250	125	8V 1800	180
3V 670	67	5V 1320	132	8V 1900	190
3V 700	70	5V 1400	140	8V 2000	200
3V 730	73	5V 1450	145	8V 2120	212
3V 780	78	5V 1500	150	8V 2240	224
3V 800	80	5V 1600	160	8V 2360	236
3V 850	85	5V 1700	170	8V 2500	250
3V 880	88	5V 1800	180	8V 2650	265
3V 900	90	5V 1900	190	8V 2800	280
3V 950	95	5V 2000	200	8V 3000	300
3V 1000	100	5V 2120	212	8V 3150	315
3V 1060	106	5V 2240	224	8V 3350	335
3V 1120	112	5V 2360	236	8V 3550	355
3V 1180	118	5V 2500	250	8V 3750	375
3V 1250	125	5V 2650	265	8V 3800	380
3V 1320	132	5V 2800	280	8V 3850	385
3V 1400	140	5V 3000	300	8V 4000	400
3V 1500	150	5V 3150	315	8V 4250	425
3V 1600	160	5V 3350	335	8V 4500	450
3V 1700	170	5V 3550	355	8V 4750	475

●Length codes are according to RMA inside length.
●All wrapped type belts are also available in Aramid tensile cords and made to order, please contact our seales office.
