Endless transmission V-belt with longitudinal V-shaped ribs. The ribs of the belts are fit into the grooved pulleys, which contributes the optional contact over the full surface of the pulley. It reduces the risks of over tensioning or under tensioning and provides the maximum transmission ratio and maximum belt service life.

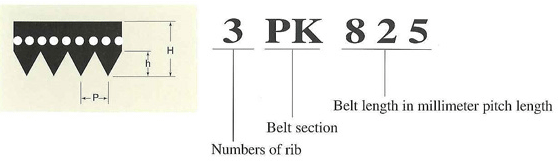

| Section | PK | PJ |
|---|---|---|
| H (mm) | 5.80 | 4.00 |
| P (mm) | 3.56 | 2.34 |
| h (mm) | 2.90 | 2.00 |
| Angle (o) | 40 | 40 |
SIZE LIST
| Part No. | Inched No. | Part No. | Inched No. | Part No. | Inched No. |
|---|---|---|---|---|---|
| 3PK 765 | 300 K3 | 5PK 735 | 290 K5 | 6PK 1245 | 490 K6 |
| 3PK 980 | 385 K3 | 5PK 800 | 315 K5 | 6PK 1255 | 495 K6 |
| 3PK 990 | 390 K3 | 5PK 825 | 325 K5 | 6PK 1270 | 500 K6 |
| 3PK 1055 | 415 K3 | 5PK 915 | 360 K5 | 6PK 1285 | 505 K6 |
| 4PK 605 | 238 K4 | 5PK 940 | 370 K5 | 6PK 1355 | 533 K6 |
| 4PK 630 | 248 K4 | 5PK 965 | 380 K5 | 6PK 1500 | 590 K6 |
| 4PK 700 | 275 K4 | 5PK 1015 | 400 K5 | 6PK 1510 | 595 K6 |
| 4PK 725 | 285 K4 | 5PK 1050 | 413 K5 | 7PK 940 | 370 K7 |
| 4PK 735 | 290 K4 | 5PK 1065 | 420 K5 | 7PK 990 | 390 K7 |
| 4PK 785 | 310 K4 | 5PK 1105 | 435 K5 | 8PK 760 | 300 K8 |
| 4PK 1015 | 400 K4 | 5PK 1120 | 440 K5 | 8PK 915 | 360 K8 |
| 4PK 1040 | 410 K4 | 5PK 1435 | 565 K6 | 8PK 925 | 365 K8 |
| 4PK 1080 | 425 K4 | 6PK 990 | 390 K6 | 8PK 940 | 370 K8 |
| 4PK 1195 | 470 K4 | 6PK 1015 | 400 K6 | 8PK 990 | 390 K8 |
| 4PK 1360 | 535 K4 | 6PK 1040 | 410 K6 | 8PK 1015 | 400 K8 |
| 4PK 1460 | 575 K4 | 6PK 1105 | 436 K6 | 8PK 1040 | 410 K8 |
| 4PK 1510 | 595 K4 | 6PK 1145 | 450 K6 | 8PK 1145 | 450 K8 |
| 5PK 695 | 273 K5 | 6PK 1155 | 455 K6 | 8PK 1245 | 490 K8 |
| 5PK 710 | 280 K5 | 6PK 1230 | 485 K6 | 8PK 1270 | 500 K8 |
